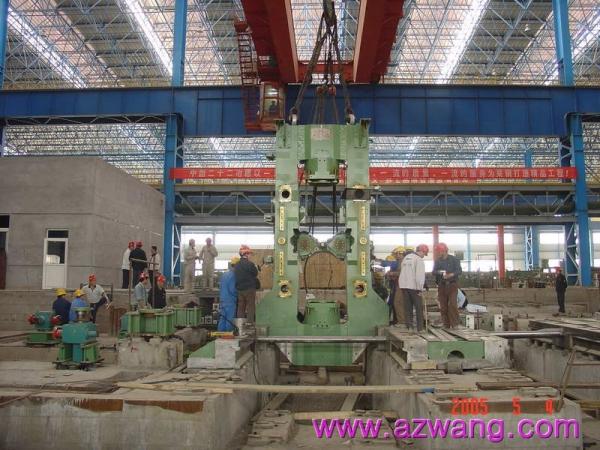

Rolling Mill Stand 12-Hi MILL 14-Hi MILL 16-Hi MILL 18-Hi MILL 20-Hi MILL

Features and application

1.Suitable for mild steel, stainless steel, and special steel, especially for high precision wider and thin coils.

2.That hydraulic bending devices and middle rolles horizontal moving installations can fast regulate the roller's in order to eliminate the harmful touching areas of rollers to aim to control the plate shape and gibbous degree.

3.Flat,stability, and controllable. It's effective to improve thinner of strip edges and cracks with smaller working rollers to enhance pressure force and total pressure force of rolling routes. Type of working rollers is flat rollers which reduce the requirement of spare parts and consumption.

4.It is equipped with AGC system to get high precision, which is especially suitable for rolling hih precision requirement of wider coils and thinner coils.

Components of roling mill

Pay-off reel (loading car)→head straightening unit→entry tension reel (unloading car) →Front devices→six roller master mill→Rear device→exit tension reel(unloading car)→(auxiliary coiler) the techincal data for cold rolling mill.

The technical agreement

A.Rolling conditions:

1.Rolling material: The general carbon steel, steel, low alloy steel belt

2. The embryo of specification: 2.75 x 550 mm or less

3. The product specification: acuity 0.8 x 550 mm

4. The rolling force: P 450 t or less

5. Diameter: D580mm, maximum volume weight 7000 kg

6. Speed: 3 # frame the exit velocity of 160 m/min

B. Equipment process scheme: (for reference)

Rolling framework - spiral piston - 1 # (work roll drive) - 2 # frame (work roll drive) - 3 # frame (backup roll drive) - seamless winding machine

C. The main equipment configuration

1. The feeding rack

2. A welding platform (welding machine users should bring along their own)

3. The spiral loop

4. The host three sets (see the equipment parameters)

5. Thickness gauge technology platform Two (thickness gauge users should bring along their own)

6. two measurement for tension

7. Reel

8. Lean is a gas station

9. Hydraulic station

10. A set of direct current control system

Beijing Sino Steel Engineering & Equipment Co., Ltd. is concentrating on developing of ferrous & non-ferrous making and Rolling technology, mainly.

As one of the most experienced Chinese suppliers of complete line and components for steel and non-ferrous industries, Beijing Sino Steel Engineering & Equipment Co., Ltd. is engaged in design, manufacturing, engineering and service activities on word-wide basis.

Overseas Partners (Office):

India, Indonesia, Malaysia, Thailand, Korea, Turkey, UAE, Qatar, Iran, Saudi Arabia, Kuwait, Germany, France, Canada, USA, Brazil, Etc.

MAIN SCOPE SUPPLY:

EPS Project Line:

EAF, LF, Continuous Casting Machine, Preheating Furnace, Hot Rolling Mill Line, Cold Rolling Line, Centrifugal Casting Line, Slitting Line,Cut-to-length Line, Cleaning Line, Pickling Line, Coating line, Levelling line, Billet grinding line ETC.

Components & Parts:

Mill stand, Coiler, Uncoiler, Gearbox, Leveller, Copper Mould Tube, Copper Mould Plate, Water Jacket, Water Cooled Cable, Forged Rolls, Casting Rolls, Roll Shell, Roll Core,Bearing, Universal Shaft, Lathe, ETC.

​
