Speed reducer Gearbox hoister gearbox Tunneling machine mining industry

Description

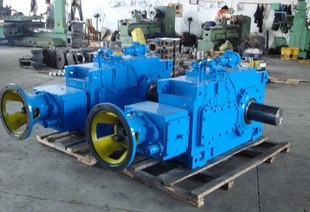

The hoister gearbox is a special gearbox for mine hoisting equipment, wherein ZZ series products are hard-surface planetary gear reducer developed according to domestic and foreign market requirements and technology development trends.

This includes a single-level (ZZD), two-level (ZZL) and three-level (ZZS) planetary gear structures, ZZDP and ZZLP planetary gear structures, for example, one-level parallel axis + one-level planetary structure (ZZDP), one-level parallel axis + two-level planetary structure (ZZLP) and other configurations. With comprehensive hoister gearbox category options, the gear box can not only meet the different spatial arrangement requirements of the whole unit but also has large transmission ratio, big output torque and good applicability.

Technical Data

Model: ZZD, ZZL, ZZS, ZZDP, ZZLP

Transmission power: 0 kW～1,800 kW

Transmission ratio: i = 4～400

Maximum torque: 2,056 kN.m

Advantages

Suited to frequent start and brake;

High gear strength, large brake torque, and reliable forward and backward operation;

Small volume, light weight, low vibration and noise;

High transmission efficiency;

Multiple non-standard deigns can be realized according to user requirements.

Application

Specially designed for mine hoisting equipment

Application References

Beijing Sino Steel Engineering & Equipment Co., Ltd. is concentrating on developing of ferrous & non-ferrous making and Rolling technology, mainly.

As one of the most experienced Chinese suppliers of complete line and components for steel and non-ferrous industries, Beijing Sino Steel Engineering & Equipment Co., Ltd. is engaged in design, manufacturing, engineering and service activities on word-wide basis.

Overseas Partners (Office):

India, Indonesia, Malaysia, Thailand, Korea, Turkey, UAE, Qatar, Iran, Saudi Arabia, Kuwait, Germany, France, Canada, USA, Brazil, Etc.

MAIN SCOPE SUPPLY:

EPS Project Line:

EAF, LF, Continuous Casting Machine, Preheating Furnace, Hot Rolling Mill Line, Cold Rolling Line, Centrifugal Casting Line, Slitting Line,Cut-to-length Line, Cleaning Line, Pickling Line, Coating line, Levelling line, Billet grinding line ETC.

Components & Parts:

Mill stand, Coiler, Uncoiler, Gearbox, Leveller, Copper Mould Tube, Copper Mould Plate, Water Jacket, Water Cooled Cable, Forged Rolls, Casting Rolls, Roll Shell, Roll Core,Bearing, Universal Shaft, Lathe, ETC.

​
