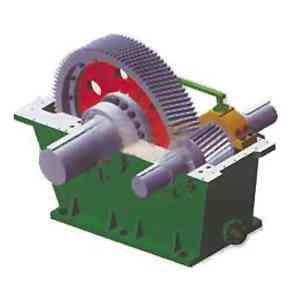

Speed reducer Gearbox high speed gearboxes turbines centrifugal fans

Description

The high speed gearboxes set the critical requirements for the gear strength and bearing service life due to the high-impact working loads.

The SEEC high-speed gearboxes are of advantage in terms of load capacity, volume, weight, appearance quality and cost performance. The products ensure the stable operation, low temperature rise, low noise, and high efficiency.

Technical Data

Main specifications: single-stage center distance 100 mm-1000 mm
Maximum power: 55,000 kW
Maximum torque: 7,350,000 N.m
Maximum rotation speed: 67,000 r/min
Maximum tangential speed of pitch: 176 m/s
Maximum gear machining accuracy: ISO grade-3

Advantages

Compact structure
High precision
Long service life
Improved load capacity and low noise performance through flank modification

Applications

Available as the supporting gearboxes on steam turbines, generation of combustion turbines, centrifugal and axial flow fans, blowers, compressors, high and low-pressure pumps, recycle of deteriorative and catalytic energy, and oxygen generators.

Applications examples

Beijing Sino Steel Engineering & Equipment Co., Ltd. is concentrating on developing of ferrous & non-ferrous making and Rolling technology, mainly.

As one of the most experienced Chinese suppliers of complete line and components for steel and non-ferrous industries, Beijing Sino Steel Engineering & Equipment Co., Ltd. is engaged in design, manufacturing, engineering and service activities on word-wide basis.

Overseas Partners (Office):

India, Indonesia, Malaysia, Thailand, Korea, Turkey, UAE, Qatar, Iran, Saudi Arabia, Kuwait, Germany, France, Canada, USA, Brazil, Etc.

MAIN SCOPE SUPPLY:

EPS Project Line:

EAF, LF, Continuous Casting Machine, Preheating Furnace, Hot Rolling Mill Line, Cold Rolling Line, Centrifugal Casting Line, Slitting Line,Cut-to-length Line, Cleaning Line, Pickling Line, Coating line, Levelling line, Billet grinding line ETC.

Components & Parts:

Mill stand, Coiler, Uncoiler, Gearbox, Leveller, Copper Mould Tube, Copper Mould Plate, Water Jacket, Water Cooled Cable, Forged Rolls, Casting Rolls, Roll Shell, Roll Core,Bearing, Universal Shaft, Lathe, ETC.

​
