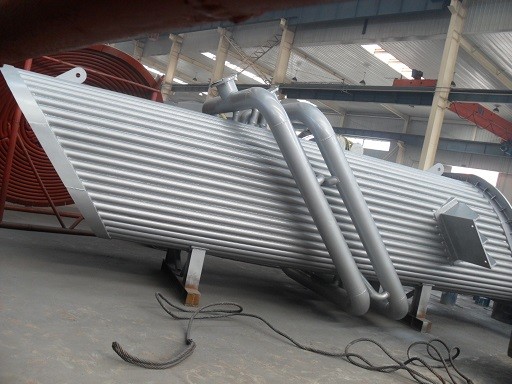

WATER-COOLED PANEL FURNACE WALL & ROOF FOR EAF & CONVERTER

Water-cooled panel furnace wall & roof are important parts of EAF & converter for steel making.

Water cooled system composing of water cooled panels, water cooled roof and water cooled elbow is an integral part in the operation of an electric arc furnace.

Typically, there are several water cooled systems.

Some operations require extremely clean, high quality cooling water.

Transformer cooling, delta closure cooling, bus tube cooling and electrode holder cooling are all such applications.

These systems will consist of a closed loop circuit, which conducts water through these sensitive pieces of equipment.

The water in the closed loop circuit passes through a heat exchanger to remove heat. The circuit on the open loop side of the heat exchanger flows to a cooling tower for energy dissipation.

The water cooled elements such as water cooled panels, water cooled roof panels, water cooled offgas system ducting, water cooled furnace cage etc. will receive cooling water from a cooling tower.

◆ APPLICATION

Beijing Sino Steel Engineering & Equipment Co., Ltd. is concentrating on developing of ferrous & non-ferrous making and Rolling technology, mainly.

As one of the most experienced Chinese suppliers of complete line and components for steel and non-ferrous industries, Beijing Sino Steel Engineering & Equipment Co., Ltd. is engaged in design, manufacturing, engineering and service activities on word-wide basis.

Overseas Partners (Office):

India, Indonesia, Malaysia, Thailand, Korea, Turkey, UAE, Qatar, Iran, Saudi Arabia, Kuwait, Germany, France, Canada, USA, Brazil, Etc.

MAIN SCOPE SUPPLY:

EPS Project Line:

EAF, LF, Continuous Casting Machine, Preheating Furnace, Hot Rolling Mill Line, Cold Rolling Line, Centrifugal Casting Line, Slitting Line,Cut-to-length Line, Cleaning Line, Pickling Line, Coating line, Levelling line, Billet grinding line ETC.

Components & Parts:

Mill stand, Coiler, Uncoiler, Gearbox, Leveller, Copper Mould Tube, Copper Mould Plate, Water Jacket, Water Cooled Cable, Forged Rolls, Casting Rolls, Roll Shell, Roll Core,Bearing, Universal Shaft, Lathe, ETC.

​
